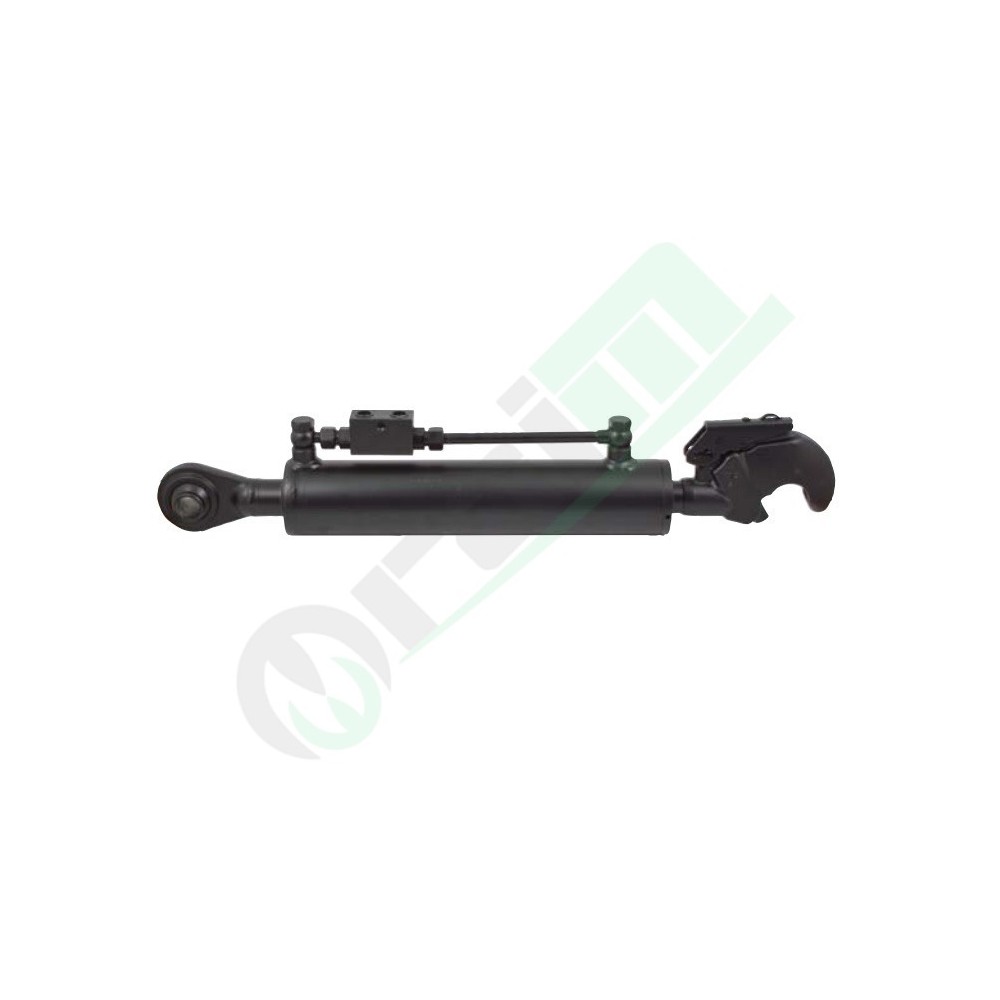

Same Solaris New Holland TCE Hydraulic Top Link 470mm 50936 | Raim Store

Hydraulic Top Link Cylinder Cat. 2 for Same Solaris & New Holland TCE Tractors Part Number 50936

star star star star star_border
Aftermarket
50936

The heavy-duty hydraulic top link cylinder (code 50936) is engineered for agricultural tractor 3-point hitches, specifically designed to fit compact and orchard tractor models. It features a minimum length of 470 mm, a stroke of 154 mm, a 60 mm bore (cylinder diameter), a 30 mm rod diameter, and a net weight of 9.3 kg. The rod end comes equipped with a Cat. 2 National quick-release hook, while the cylinder base end features a Ø 19.3 mm ball joint. Complete with a 3/8" dual pilot check valve, it is custom-designed for New Holland TCE series (TCE 40, TCE 45, TCE 50, TCE 55), Same Solaris (Solaris 25, Solaris 35, Solaris 45), and Lamborghini (R 130, R 140) tractors.

Out of Stock
€255.00
Tax included
COUPON
- € 5,10
Final price: € 249,90
Quantity

Processing in approximately 2-3 working days
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Hydraulic Top Link Cylinder 470x60x30 with Quick Release Hook - Code 50936

The heavy-duty hydraulic top link cylinder (Product Code: 50936) is a professional-grade hydraulic actuator engineered for precision alignment, real-time geometry adjustment, and secure load retention of three-point linkage implements. Featuring a highly compact, reinforced dual-acting architecture with a minimum retracted length of 470 mm and a net weight of 9.3 kg, this mechanism is ideally suited for specialized, orchard, and compact tractors, allowing operators to adjust implement pitch angles dynamically from the cabin.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, maintaining rod stroke configurations even under sudden hydraulic hose ruptures or line pressure drops, shielding field implements from accidental dropping. The specific hardware layout features a heavy-duty spherical rod eye end with a 19.3 mm pin bore hole on the cylinder base side (tractor linkage), paired with an automatic quick-release catch hook classified under Category 2 National on the rod end side (implement linkage). The combination of a 60 mm cylinder bore diameter, a high-tensile 30 mm micro-polished chrome rod, and a short 154 mm stroke provides great mechanical reliability along with fast hydraulic response, making this link perfectly suited for compact agricultural implements working in narrow rows or restricted areas.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder
Minimum Length (Retracted) 470 mm
Cylinder Stroke 154 mm
Cylinder Bore Diameter (D) 60 mm
Piston Rod Diameter (d) 30 mm
Piston Rod End Fitting (F) Automatic quick-release latch catch hook - Cat. 2 National
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 19.3 mm
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Net Component Weight 9.3 kg
Product Code 50936
Tractor Applications & Compatibility
Manufacturer Compatible Models
LAMBORGHINI R 130, R 140
NEW HOLLAND TCE SERIES: TCE 40, TCE 45, TCE 50, TCE 55
SAME SOLARIS: Solaris 25, Solaris 35, Solaris 45
