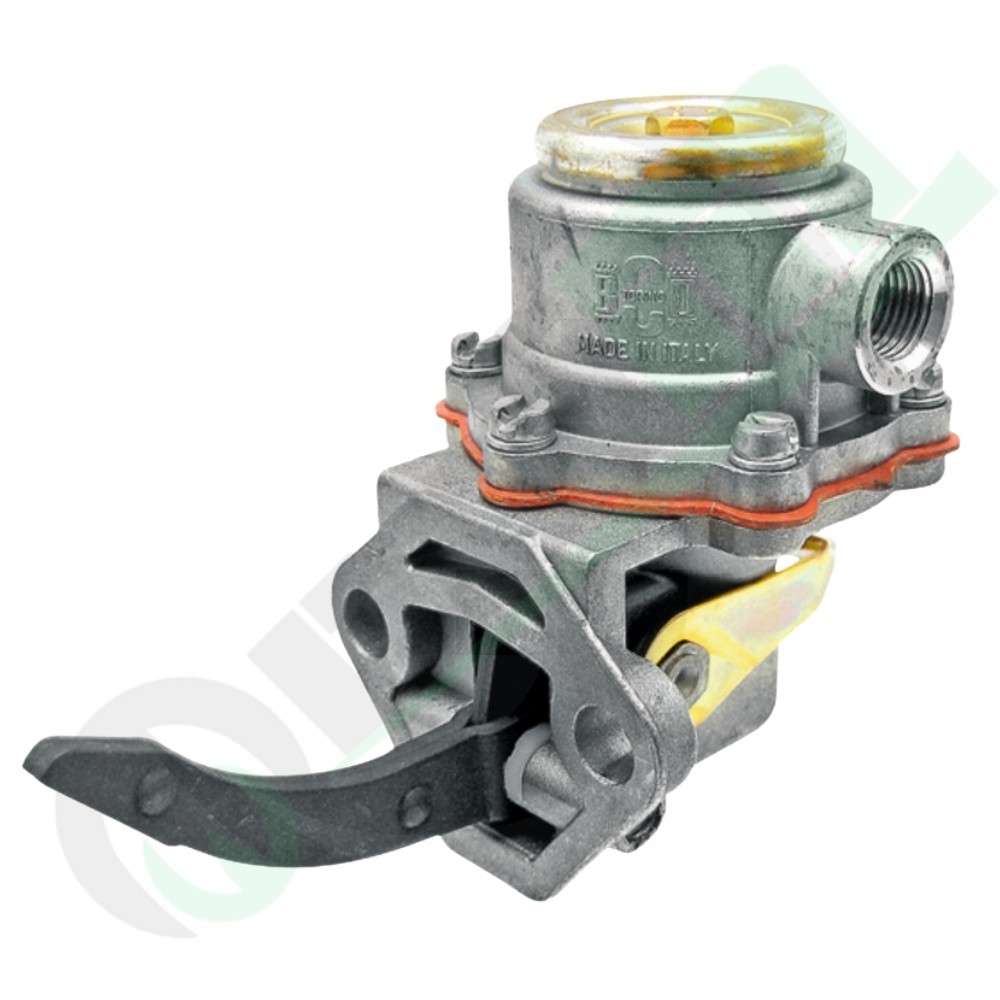

2-Hole Diaphragm Fuel Lift Pump Part Number 38018086 for Case IH Tractors

star star star star star_border
Aftermarket
38018086

The diaphragm fuel lift pump (part number 38018086) is a precision mechanical component engineered to optimize the fuel delivery system in agricultural engines. It features a 2-hole mounting flange with a vertical hole spacing of 45 mm, a lever length of 64 mm from the flange to the end, and a 12 mm connection diameter. This professional-grade replacement pump is purpose-built for Case IH tractors powered by BD-144 and BD-154 engines. It delivers a perfect fit for British series models (276, 354, 444, B 414), as well as the 200, 2300, 3000, and A-Familie series, strictly matching OEM reference code 708294R93.

Hurry! only 4 items left in stock.
€22.90
Tax included
COUPON
- € 0,46
Final price: € 22,44
Quantity

Last 4 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Diaphragm Fuel Feed Pump (2-Hole) - Part No. 38018086

The diaphragm fuel feed pump (Part Number: 38018086) is a precision-engineered fuel system component designed specifically for Case IH engines and tractors. Manufactured to meet rigorous factory quality standards, it ensures smooth priming and a steady flow of combustible fuel.
Design Specifications and Mechanical Reach
This mechanical model features a 2-hole mounting flange with a vertical center-to-center hole spacing of 45 mm. The reach of the mechanical operating lever, measured from the base of the mounting flange to the very tip of the lever, is exactly 64 mm. The nominal connection diameter is 12 mm. These strict geometric constraints prevent leaks and guarantee a tight fit against the engine block.
Cross Reference (Original Equipment Codes)
This part replaces or is fully interchangeable with the following OEM reference number:
  • Case IH: 708294R93
Engine Applications and Model Compatibility
The cross-compatibility of this lift pump spans across a wide fleet of Case IH legacy, industrial, and British-built tractors:
  • Case IH Engines: BD-144, BD-154.
  • British Range: 276, 354, 364, 374, 384, 434, 444, 2276, B 414.
  • 200 Series: 238.
  • 2300 Series: 2300.
  • 3000 Series: 3434.
  • A-Familie Series: 2350.
Technical Specifications
Part Number 38018086
Flange Configuration 2 mounting holes
Vertical Hole Spacing 45 mm
Flange to Lever Tip Distance 64 mm
Connection Diameter Ø 12 mm
Mechanical Type Mechanically actuated diaphragm lift pump
