Case IH Cummins Mechanical Fuel Lift Pump 38002495 | Raim Store

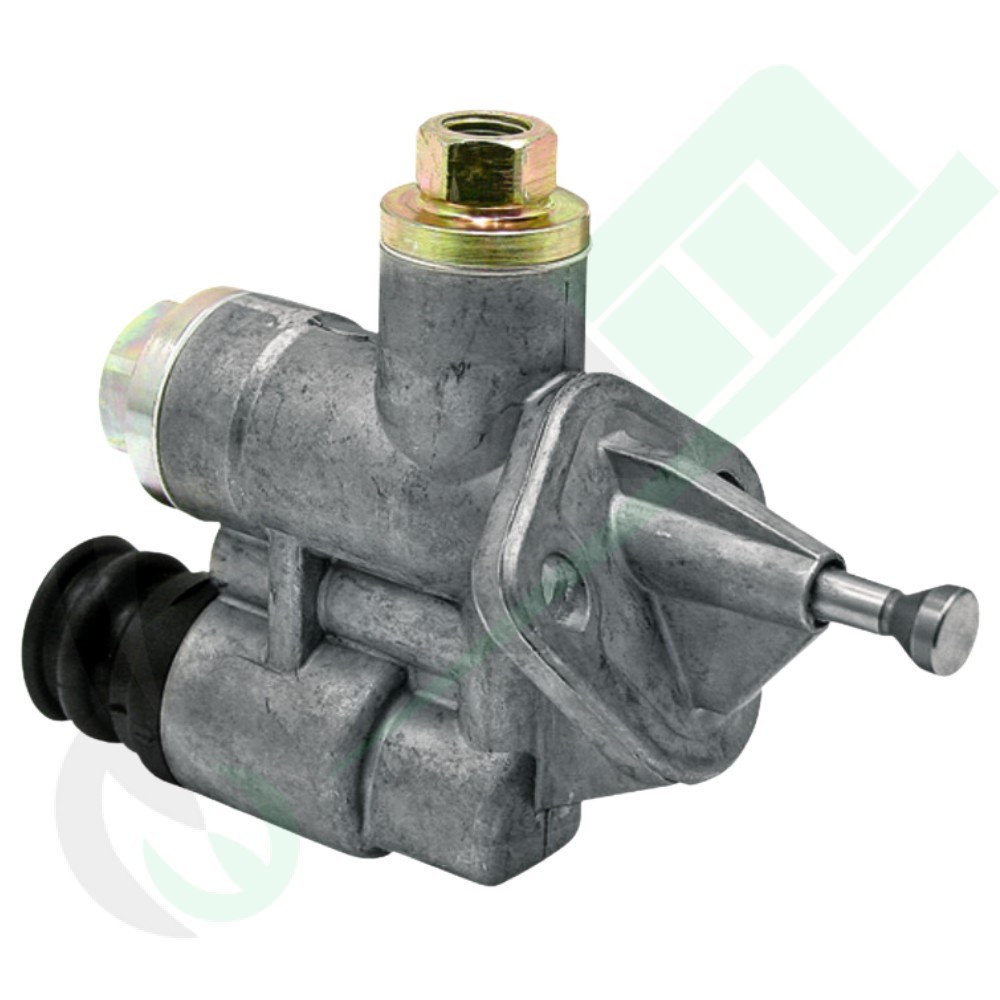

Mechanical Diaphragm Fuel Lift Pump for Case IH Tractors and Cummins Engines Part 38002495

Reference : 38002495

The mechanical diaphragm fuel lift pump (part number 38002495) is a 2-bolt mount lift pump engineered for Cummins engines (6TAA-830) and Case IH heavy agricultural equipment. It features a bolt hole center distance of 45 mm, a 55 mm operating pushrod length from the mounting flange to the actuator tip, and 1/2" - 14 NPTF threaded ports. This premium replacement pump fits Case IH Magnum (7210-7250 Pro, 8910-8950), MX Magnum, AF Axial-Flow, Steiger, and Patriot / SPX sprayers.

Hurry! only 2 items left in stock.

€87.90

Tax included

Quantity

Last 2 items

Add to Compare

Add to Wishlist

Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Guarantee safe checkout

Diaphragm Fuel Lift Pump for Cummins and Case IH Engines - Code 38002495

The heavy-duty mechanical diaphragm fuel lift pump (Product Code: 38002495) is a precision-engineered structural replacement part designed to secure a continuous, stable low-pressure fuel transfer toward the main high-pressure injection circuit. Developed specifically for high-displacement industrial internal combustion engines and heavy-duty agricultural machinery, this lift pump maintains exceptional fluid flow constants. By preventing priming drops, it secures unhindered fuel feed distribution and safeguards drivetrain reliability under intensive field workloads and high structural loading parameters.

Design Details and Geometric Dimensions

This low-pressure mechanical transfer pump features a high-density, reinforced alloy housing built to withstand substantial mechanical stresses, heavy operational field vibrations, and corrosive chemical action from distillate fuels. The installation layout incorporates a standardized 2-hole mounting flange configured to secure perfect, vibration-free alignment on the engine monobloc. The center-to-center interaxis distance between the anchoring holes is precisely 45 mm, while the longitudinal extension of the mechanical actuator lever—measured straight from the mounting flange face to the terminal tip of the plunger spintore—reaches 55 mm. The hydraulic interface features high-capacity channels and is machined with robust 1/2" - 14 NPTF threaded ports to secure stable, leak-free line couplings under heavy delivery rates. Its internal diaphragm matrix is composed of advanced high-elasticity elastomers that retain material memory, preventing premature structural splitting caused by severe thermal cycles.

Technical Specifications

Component Classification	Mechanical diaphragm fuel lift pump / high-capacity transfer pump
Flange Layout	Standard 2-hole anchoring pattern
Hole Center-to-Center Distance	45 mm
Mechanical Plunger Extension	55 mm (from mounting flange face to tip of actuator plunger)
Hydraulic Port Thread Spec	1/2" - 14 NPTF
Original Equipment (OE) Cross References	CASE IH: I87473339, 87473339, J936316, J933252
Product Reference Code	38002495

Application Fleet & Engine Compatibility

Manufacturer / Fleet Series	Target Application Suitability and Fleet Equipment
Cummins Power Units	Cummins 6TAA-830
CASE IH - Axial-Flow Series	Combine Harvesters: 2365, 2366, 2377, 2388
CASE IH - Magnum Series	Agricultural Tractors: 7210, 7210 Pro, 7220, 7220 Pro, 7230, 7230 Pro, 7240, 7240 Pro, 7250, 7250 Pro
CASE IH - Magnum 8900 Series	Agricultural Tractors: 8910, 8920, 8930, 8940, 8950
CASE IH - MX Magnum Series	Agricultural Tractors: MX 180 Magnum, MX 200 Magnum, MX 210 Magnum, MX 220 Magnum, MX 230 Magnum
CASE IH - Patriot Sprayer Series	Self-Propelled Sprayers: 3150 (6/04-5/09), 3185 (8/04-5/09), 3210 (8/05-5/09)
CASE IH - SPX Series (Sprayers)	SPX3185 (10/02-7/09), SPX3200 (6/01-12/04), SPX3200 (11/01-10/02), SPX3200B (11/99-11/01), SPX3310 (11/04-5/09), SPX4260 (4/99-11/01), SPX4260 (11/01-6/04)
CASE IH - Steiger Series (Articulated)	9310, 9330
