Kubota Solis BCS Hydraulic Top Link 410mm 51287 | Raim Store

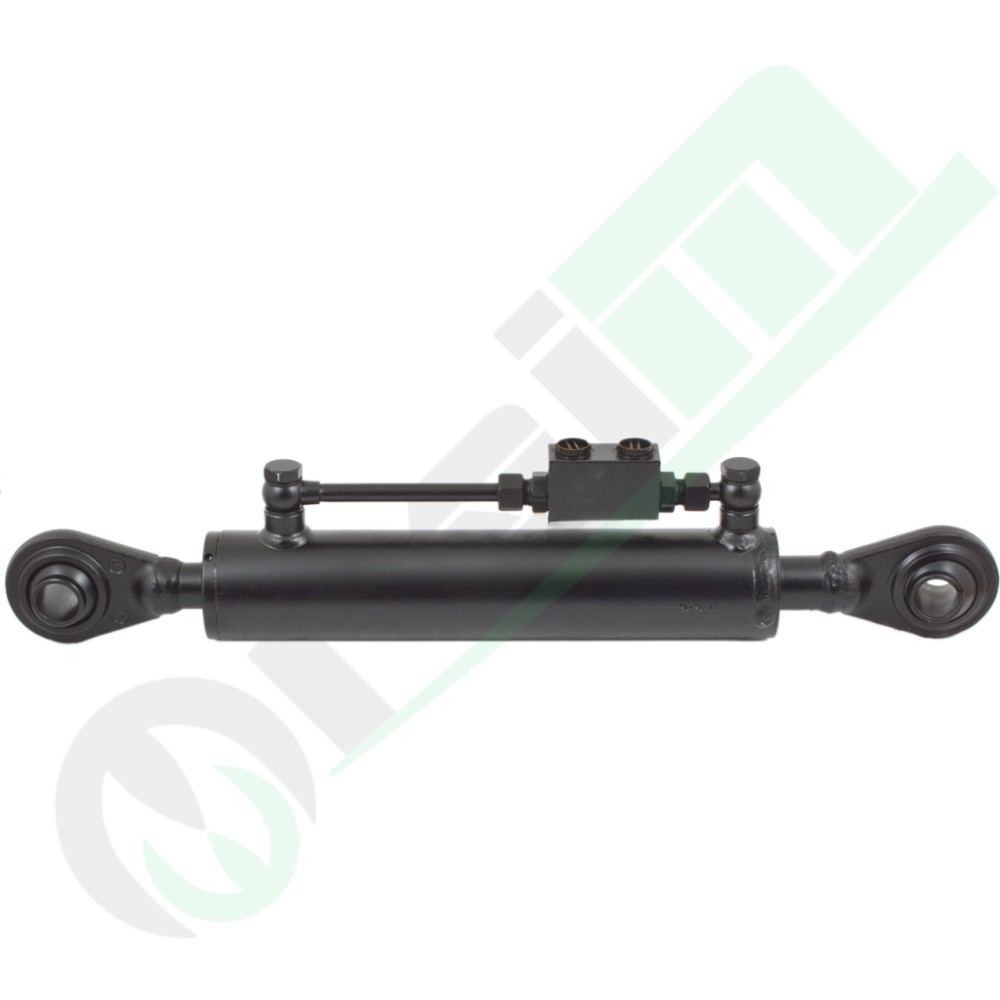

Hydraulic Top Link Cylinder for Kubota, Solis, and BCS Compact Tractors Part Number 51287

star star star star star_border
Aftermarket
51287

The compact hydraulic top link cylinder (code 51287) is engineered for the 3-point hitch systems of compact and sub-compact agricultural tractors. It features a minimum length of 410 mm, a 50 mm bore (cylinder diameter), and a 25 mm rod diameter. Both the rod end and the cylinder base end come equipped with a Ø 19.3 mm ball joint. Complete with a 1/4" dual pilot check valve, it is specifically adaptable to Kubota B Series (B1161, B1181, B1241), Solis (S26 XL, S26 XL Shuttle), BCS Vivid (Vivid 35, Vivid 400) tractors, as well as Cosmo and VST compact tractor models.

Hurry! only 5 items left in stock.
€159.00
Tax included
COUPON
- € 3,18
Final price: € 155,82
Quantity

High availability
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Hydraulic Top Link Cylinder 410x50x25 with Dual Ball Joints - Code 51287

The heavy-duty hydraulic top link cylinder (Product Code: 51287) is a professional-grade compact hydraulic actuator engineered for precision alignment, geometry adjustment, and secure load retention of three-point linkage implements. Featuring a highly compact dual-acting architecture with a minimum retracted length of 410 mm, this mechanism is ideally suited for sub-compact tractors and specialized utility models, allowing operators to adjust implement pitch angles dynamically from the cabin.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 1/4". The check valve provides a robust mechanical locking force, maintaining rod stroke configurations even under sudden pressure drops, shielding field implements from accidental dropping. The hardware layout features a symmetrical design with standard spherical knuckle joint swiveling ball eyes on both the cylinder base and the rod end, each machined with a 19.3 mm pin hole for precise coupling on compact utility tractor hitches. The combination of a 50 mm cylinder bore diameter and a high-tensile 25 mm chrome rod provides great operational reliability and fast hydraulic response, making this link perfectly suited for compact agricultural implements.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder
Minimum Length (Retracted) 410 mm
Cylinder Bore Diameter (D) 50 mm
Piston Rod Diameter (d) 25 mm
Piston Rod End Fitting (F) Spherical knuckle joint swiveling ball eye Ø 19.3 mm
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 19.3 mm
Hydraulic Port Connection 1/4" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Product Code 51287
Tractor Applications & Compatibility
Manufacturer Compatible Models
BCS Vivid 35, Vivid 400
COSMO TRATTORINO / VST
KUBOTA B SERIES: B1161, B1181, B1241
SOLIS S26 XL, S26 XL Shuttle
: 51287
