John Deere Hydraulic Top Link 550mm Cat. 2 50606 | Raim Store

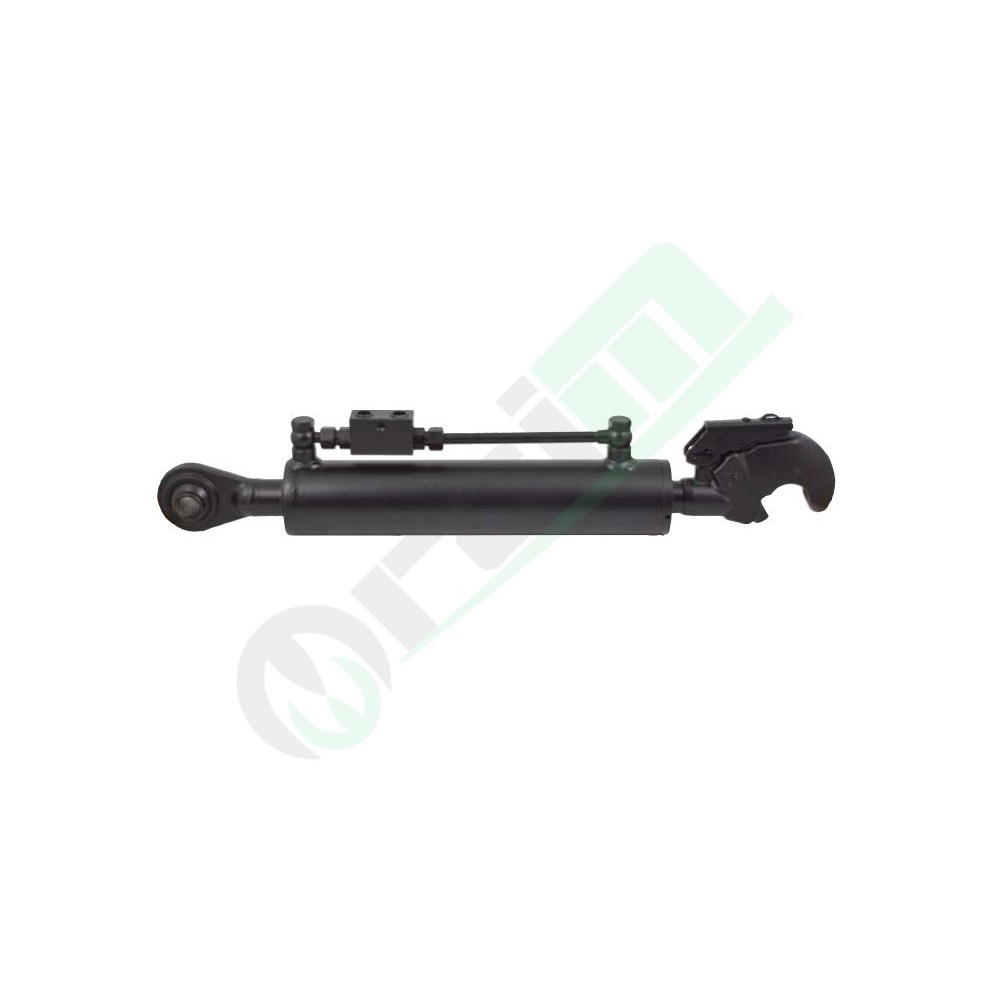

Hydraulic Top Link Cylinder Cat. 2 for John Deere Tractors Part Number 50606

star star star star star_border
Aftermarket
50606

The heavy-duty hydraulic top link cylinder (code 50606) is engineered for agricultural tractor 3-point hitches. It features a minimum length of 550 mm, a stroke of 215 mm, a 70 mm bore (cylinder diameter), a 35 mm rod diameter, and a net weight of 12.2 kg. It comes equipped with a Cat. 2 National quick-release hook on the rod end, a Ø 25.4 mm ball joint on the cylinder base end, and a 3/8" dual pilot check valve. This cylinder is specifically adaptable to European John Deere tractors from the 5020 Series (5820), 6000 Series (6100, 6200, 6300), and 6010 Series (6110, 6210, 6310).

Hurry! only 5 items left in stock.
€290.00
Tax included
COUPON
- € 5,80
Final price: € 284,20
Quantity

High availability
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Hydraulic Top Link Cylinder 550x70x35 for John Deere - Code 50606

The heavy-duty hydraulic top link cylinder (Product Code: 50606) is a professional-grade hydraulic actuator engineered for precision alignment, real-time geometry adjustment, and secure load retention of three-point linkage implements. Designed to be perfectly adaptable to John Deere tractor specifications (European models), this dual-acting cylinder has a net weight of 12.2 kg and allows operators to adjust implement pitch angles dynamically from the cabin, maximizing working field performance.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, maintaining rod stroke configurations even under sudden hydraulic hose ruptures or line pressure drops, shielding field implements from accidental dropping. The specific hardware layout features a heavy-duty spherical rod eye end with a 25.4 mm pin bore hole on the cylinder base side (tractor linkage), paired with an automatic quick-release catch hook classified under Category 2 National on the rod end side (implement linkage). The combination of a 70 mm cylinder bore diameter, a high-tensile 35 mm micro-polished chrome rod, and a 215 mm stroke provides outstanding mechanical reliability along with high thrust and retraction load parameters, making this link perfectly suited for a wide range of agricultural implements performing heavy-duty tasks.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder
Brand Compatibility John Deere (Adaptable)
Minimum Length (Retracted) 550 mm
Cylinder Stroke 215 mm
Cylinder Bore Diameter (D) 70 mm
Piston Rod Diameter (d) 35 mm
Piston Rod End Fitting (F) Automatic quick-release latch catch hook - Cat. 2 National
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 25.4 mm
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Net Component Weight 12.2 kg
Product Code 50606
Tractor Applications & Compatibility
Tractor Series Compatible Models (European Market)
5020 Series 5820 (Europe)
6000 Series 6100 (Europe), 6200 (Europe), 6300 (Europe)
6010 Series 6110 (Europe), 6210 (Europe), 6310 (Europe)
