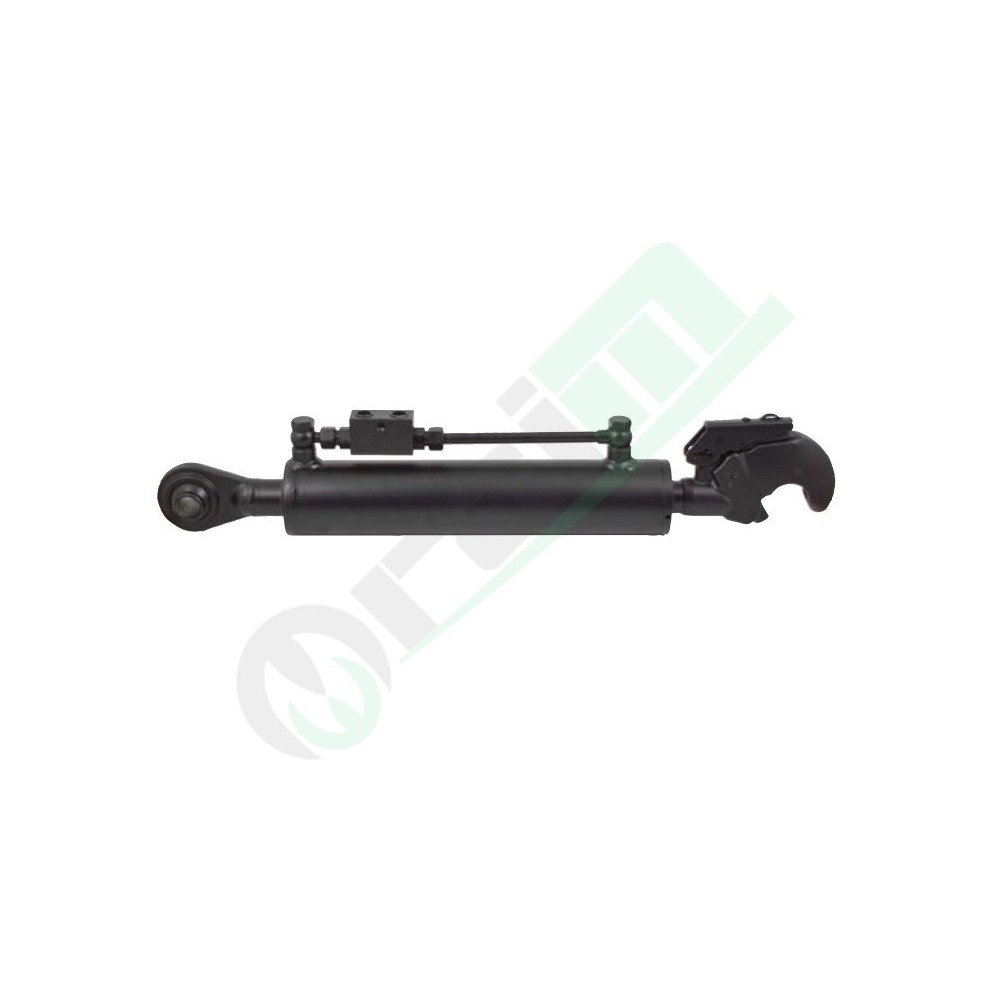

Hydraulic Top Link Cylinder for Massey Ferguson Tractors Cat. 3 Quick Hook Part Number 50882

star star star star star_border
Aftermarket
50882

The heavy-duty hydraulic top link cylinder (code 50882) is engineered for agricultural tractor 3-point hitches, specifically adaptable to Massey Ferguson tractors from the 5400 Series (particularly the 5465 Tier 2 model). It features a minimum length of 590 mm, a stroke of 220 mm, an 80 mm bore, and a 40 mm rod diameter. It comes equipped with a Cat. 3 National quick-release hook on the rod end, a Ø 25.4 mm ball joint on the cylinder base end, and a 3/8" dual pilot check valve.

Out of Stock
€379.00
Tax included
COUPON
- € 7,58
Final price: € 371,42
Quantity

Out of stock
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Hydraulic Top Link Cylinder 590x80x40 for Massey Ferguson - Code 50882

The heavy-duty hydraulic top link cylinder (Product Code: 50882) is a professional-grade hydraulic actuator engineered for precision alignment, real-time geometry adjustment, and secure load retention of three-point linkage implements. Designed to be perfectly adaptable to Massey Ferguson tractor specifications, this dual-acting cylinder allows operators to adjust implement pitch angles dynamically from the cabin, maximizing working field performance and shifting efficiently into safe road transport configurations.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, maintaining rod stroke configurations even under sudden hydraulic hose ruptures or line pressure drops, shielding field implements from accidental dropping. The specific hardware layout features a heavy-duty spherical rod eye end with a 25.4 mm pin bore hole on the cylinder base side (tractor linkage), paired with an automatic quick-release catch hook classified under Category 3 National on the rod end side (implement linkage). The combination of a large 80 mm cylinder bore diameter, a high-tensile 40 mm micro-polished chrome rod, and a 220 mm stroke provides great mechanical reliability along with high thrust and retraction load parameters, making this link perfectly suited for high-tonnage agricultural implements performing heavy-duty tasks.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder
Brand Compatibility Massey Ferguson (Adaptable)
Minimum Length (Retracted) 590 mm
Cylinder Stroke 220 mm
Cylinder Bore Diameter (D) 80 mm
Piston Rod Diameter (d) 40 mm
Piston Rod End Fitting (F) Automatic quick-release latch catch hook - Cat. 3 National
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 25.4 mm
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Product Code 50882
Tractor Applications & Compatibility
Tractor Series Compatible Models
5400 Series 5465 (Tier 2)
