Lamborghini Frutteto Hydraulic Top Link 450mm 50870 | Raim Store

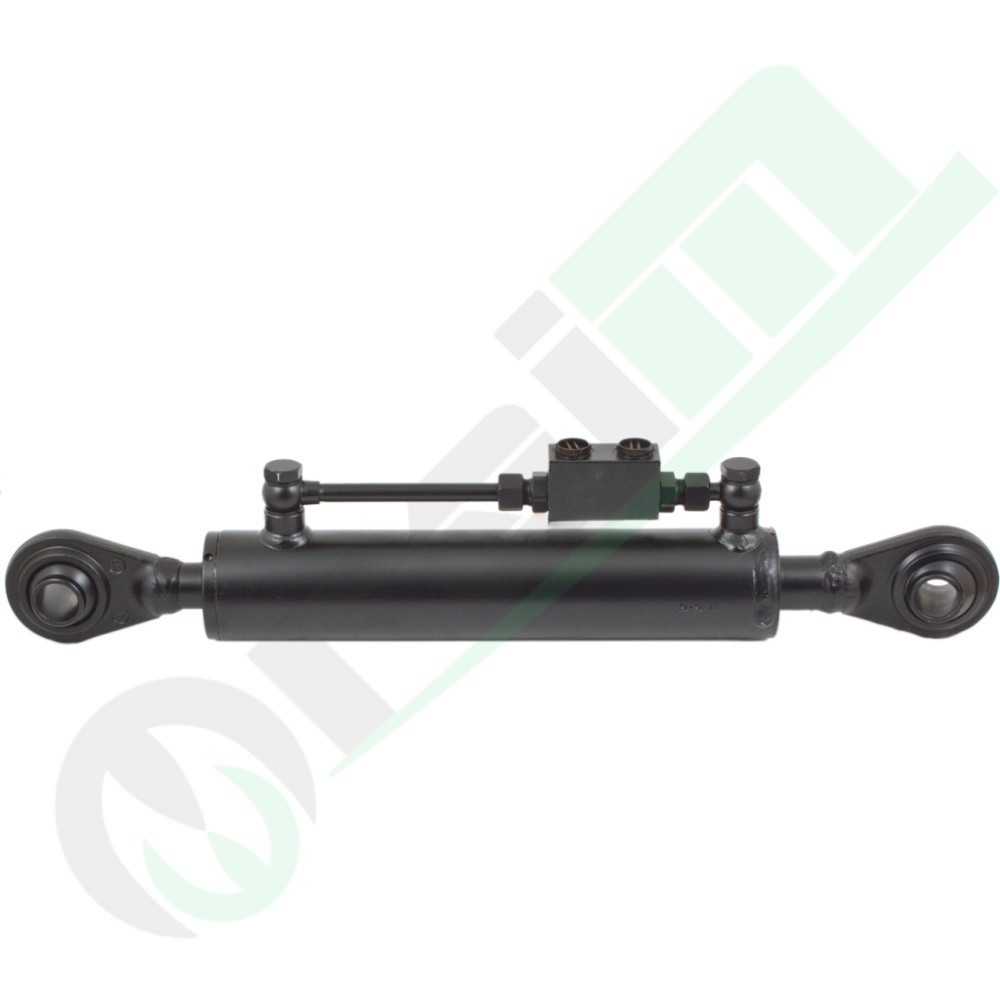

Hydraulic Top Link Cylinder for Lamborghini Frutteto Tractors Part Number 50870

star star star star star_border
Aftermarket
50870

The heavy-duty hydraulic top link cylinder (code 50870) features a minimum length of 450 mm, 150 mm stroke, a powerful 70 mm bore, and a 35 mm rod (weight 9.68 kg). It comes equipped with a symmetric dual Ø 25.4 mm ball joint and an integrated 3/8" check valve. This reinforced cylinder is engineered as a precise, high-performance fit for Lamborghini Frutteto orchard tractors.

Hurry! only 2 items left in stock.
€269.00
Tax included
COUPON
- € 5,38
Final price: € 263,62
Quantity

Last 2 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Hydraulic Top Link Cylinder 450x70x35 with Dual Ball Joints - Code 50870

The heavy-duty hydraulic top link cylinder (Product Code: 50870) is a professional-grade hydraulic actuator engineered for precision alignment, real-time geometry adjustment, and secure load retention of three-point linkage implements. Featuring a reinforced and highly compact dual-acting architecture with a minimum retracted length of 450 mm and a net weight of 9.68 kg, this mechanism is tailored to match the specific technical needs of Lamborghini Frutteto specialized orchard tractors, allowing operators to adjust implement pitch angles dynamically from the cabin.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, sealing fluid within the cylinder chambers to maintain the structural rod configuration even under sudden line pressure drops or hydraulic hose ruptures, shielding heavy suspended field implements from accidental dropping. The hardware layout features a symmetrical Category 2 configuration, with standard spherical knuckle joint swiveling ball eyes on both the cylinder base side (tractor linkage) and the rod end side (implement linkage), each machined with a 25.4 mm pin bore hole. The combination of an oversized 70 mm cylinder bore diameter, a high-tensile 35 mm micro-polished chrome rod, and a 150 mm stroke provides massive mechanical pushing force along with fast hydraulic response, making this link ideal for structurally heavy agricultural implements working in narrow rows or orchard layouts.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder
Brand Compatibility Lamborghini (Adaptable)
Minimum Length (Retracted) 450 mm
Cylinder Stroke 150 mm
Cylinder Bore Diameter (D) 70 mm
Piston Rod Diameter (d) 35 mm
Piston Rod End Fitting (F) Spherical knuckle joint swiveling ball eye Ø 25.4 mm (Cat. 2)
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 25.4 mm (Cat. 2)
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Net Component Weight 9.68 kg
Product Code 50870
Tractor Applications & Compatibility
Manufacturer Compatible Series
LAMBORGHINI FRUTTETO SERIES
: 50870
