Case IH PJ Series Hydraulic Top Link 520mm 50919 | Raim Store

Hydraulic Top Link Cylinder for Case IH PJ Series Tractors Part Number 50919

star star star star star_border
Aftermarket
50919

The heavy-duty hydraulic top link cylinder (code 50919) features a minimum length of 520 mm, 220 mm stroke, a powerful 70 mm bore, and a 35 mm rod (weight 9.7 kg). It is configured with dual-size connections: a Ø 25.4 mm rod ball joint, a Ø 19.3 mm cylinder ball joint, and a 3/8" check valve. This reinforced cylinder is engineered as a precise, high-performance fit for Case IH PJ Series orchard and vineyard tractors (specifically models PJN 75 and PJV 75).

Out of Stock
€279.00
Tax included
COUPON
- € 5,58
Final price: € 273,42
Quantity

Out of stock
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Hydraulic Top Link Cylinder 520x70x35 for Case IH - Code 50919

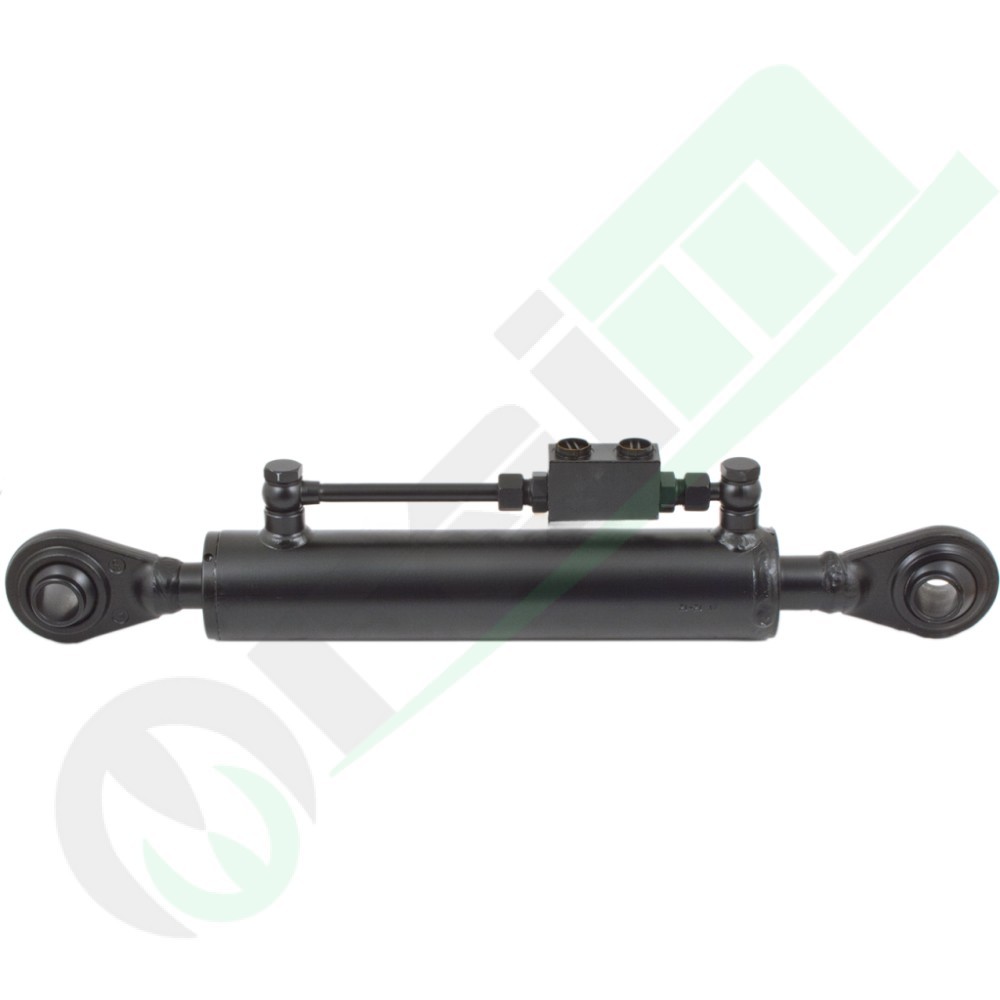

The heavy-duty hydraulic top link cylinder (Product Code: 50919) is a professional-grade hydraulic actuator engineered for structural coupling, real-time geometry adjustment, and secure load retention of three-point linkage implements. Featuring a reinforced, oversized barrel configuration (minimum retracted length of 520 mm and a net weight of 9.7 kg) tailored to match the technical specifications of Case IH specialized tractors, this dual-acting mechanism allows operators to adjust implement pitch angles dynamically from the cabin.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, sealing fluid within the cylinder chambers to maintain the structural rod configuration even under sudden line pressure drops or hydraulic hose ruptures, shielding heavy suspended field implements from accidental dropping. The specific hardware layout features a staggered, asymmetrical dual-swivel configuration: a spherical knuckle joint with a 19.3 mm pin bore on the cylinder base side (tractor linkage), paired with a larger 25.4 mm (Category 2) pin bore swiveling ball eye on the rod end side (implement linkage). The combination of an oversized 70 mm cylinder bore diameter, a high-tensile 35 mm micro-polished chrome rod, and a 220 mm stroke provides massive mechanical pushing force along with fast hydraulic response under tough working field conditions.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder
Brand Compatibility Case IH (Adaptable)
Minimum Length (Retracted) 520 mm
Cylinder Stroke 220 mm
Cylinder Bore Diameter (D) 70 mm
Piston Rod Diameter (d) 35 mm
Piston Rod End Fitting (F) Spherical knuckle joint swiveling ball eye Ø 25.4 mm (Cat. 2)
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 19.3 mm
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Net Component Weight 9.7 kg
Product Code 50919
Tractor Applications & Compatibility
Tractor Series Compatible Models
CASE IH PJ SERIES PJN 75, PJV 75
: 50919
Out of Stock
