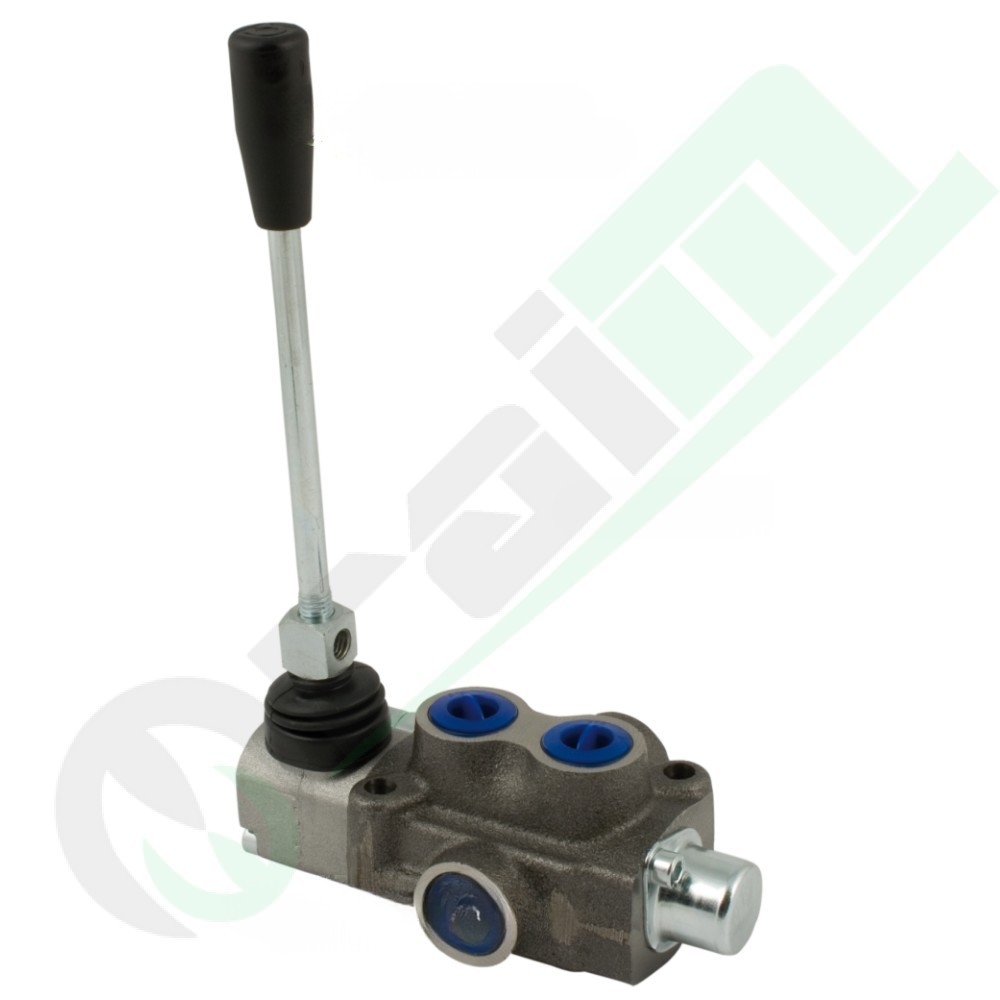

Bondioli & Pavesi MD series monoblock hydraulic valve, 1 lever for single-acting circuits. Special version with detent (position B) and left-side inlet, ideal for applications requiring constant flow without manual lever holding.
Product Description
The Bondioli & Pavesi hydraulic valve (Code 81971) stands out for its specific control lever configuration. Unlike standard models, this valve features a fixed "1" position (detent), allowing the flow to remain active without the need to hold the lever manually, alongside the classic "2" position with automatic spring return. Designed for single-acting circuits, it supports a flow rate of 40 l/min and an operating pressure of up to 180 Bar. The robust monoblock casting, combined with 3/8" Gas ports and a left-side oil inlet, ensures versatile installation and excellent performance for controlling lifts and unidirectional hydraulic motors on agricultural machinery.
Technical Data and Composition
| Brand |
Bondioli & Pavesi |
| Product Code |
81971 |
| Circuit Type |
Single Acting (S.A.) |
| Lever Operation |
0-Fixed | 1-Fixed | 2-Spring Return |
| Flow Rate |
40 l/min |
| Max Pressure |
180 Bar |
| Net Weight |
2.44 Kg |
| Connections |
3/8" Gas - Left Inlet |
