Landini Mistral New Holland T3000 Hydraulic Top Link 470mm 50957 | Raim Store

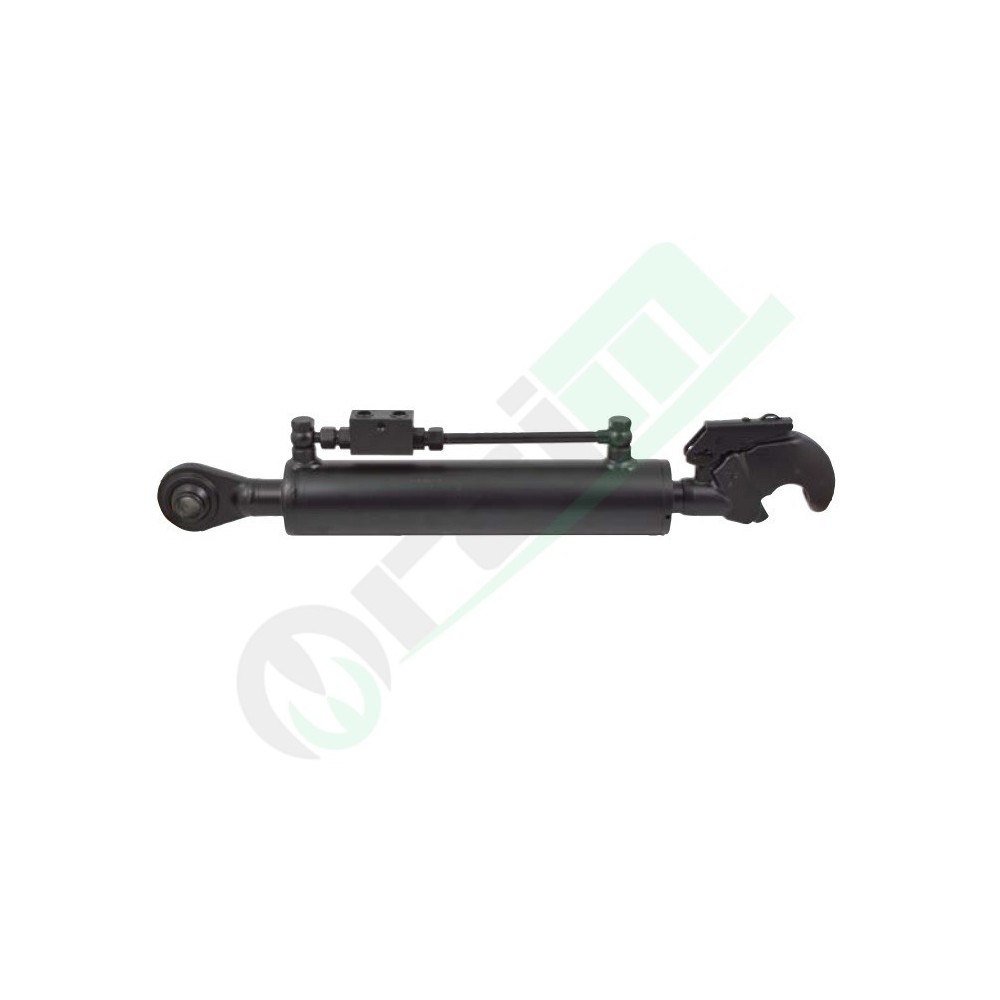

Hydraulic Top Link Cylinder Cat. 2 for Landini Mistral & New Holland T3000 Tractors Part Number 50957

star star star star star_border
Aftermarket
50957

The heavy-duty hydraulic top link cylinder (code 50957) is engineered for agricultural tractor 3-point hitches, tailor-made for compact tractor applications. It features a minimum length of 470 mm, a stroke of 173 mm, a 50 mm bore (cylinder diameter), a 30 mm rod diameter, and a net weight of 8.74 kg. The rod end comes equipped with a Cat. 2 National quick-release hook, while the cylinder base end features a Ø 19.3 mm ball joint. Complete with a 3/8" dual pilot check valve, it is perfectly adaptable to Landini Mistral series tractors manufactured from 1998 to 2004 (models 40, 45, 50, 55) and New Holland T 3000 series tractors (models T 3010, T 3020, T 3030, T 3040).

Hurry! only 3 items left in stock.
€230.00
Tax included
COUPON
- € 4,60
Final price: € 225,40
Quantity

Last 3 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Hydraulic Top Link Cylinder 470x50x30 with Quick Release Hook - Code 50957

The heavy-duty hydraulic top link cylinder (Product Code: 50957) is a professional-grade hydraulic actuator engineered for precision alignment, real-time geometry adjustment, and secure load retention of three-point linkage implements. Featuring an ultra-compact and light design (minimum retracted length of 470 mm and a net weight of 8.74 kg), this mechanism is ideally suited for compact, utility, and specialized tractors, allowing operators to adjust implement pitch angles dynamically from the cabin.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, maintaining rod stroke configurations even under sudden hydraulic hose ruptures or line pressure drops, shielding field implements from accidental dropping. The specific hardware layout features a heavy-duty spherical rod eye end with a 19.3 mm pin bore hole on the cylinder base side (tractor linkage), paired with an automatic quick-release catch hook classified under Category 2 National on the rod end side (implement linkage). The combination of a 50 mm cylinder bore diameter, a high-tensile 30 mm micro-polished chrome rod, and a 173 mm stroke provides great mechanical reliability along with fast hydraulic response, making this link perfectly suited for compact agricultural implements working in narrow or restricted environments.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder
Minimum Length (Retracted) 470 mm
Cylinder Stroke 173 mm
Cylinder Bore Diameter (D) 50 mm
Piston Rod Diameter (d) 30 mm
Piston Rod End Fitting (F) Automatic quick-release latch catch hook - Cat. 2 National
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 19.3 mm
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Net Component Weight 8.74 kg
Product Code 50957
Tractor Applications & Compatibility
Manufacturer Compatible Models
LANDINI MISTRAL SERIES (1998 - 2004): Mistral 40, Mistral 45, Mistral 50, Mistral 55
NEW HOLLAND T 3000 SERIES: T 3010, T 3020, T 3030, T 3040
: 50957
Hurry! only 3 items left in stock.

Data sheet

Attack Type
Joint / Quick Hook
Minimum length (mm)
470
Stem Ø (mm)
30
