Massey Ferguson Hydraulic Top Link 700mm Cat. 2 50959 | Raim Store

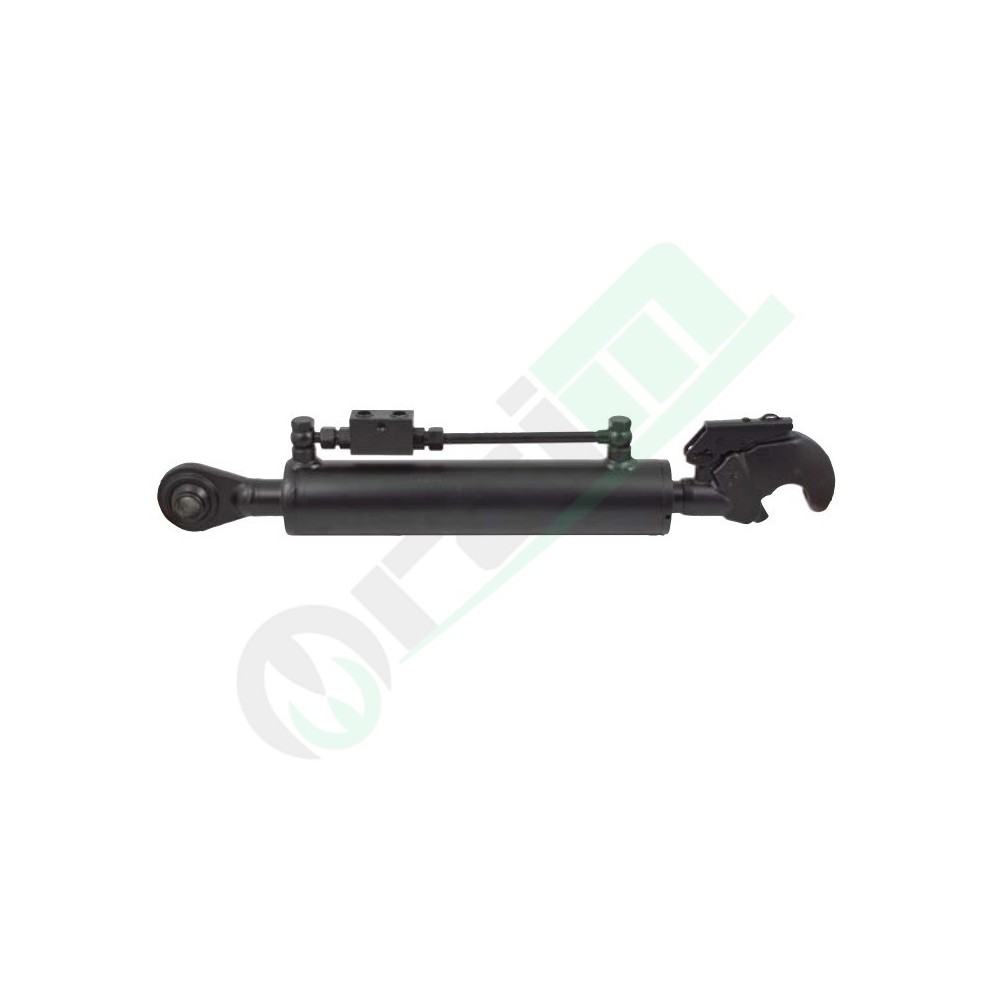

Hydraulic Top Link Cylinder for Massey Ferguson Tractors Cat. 2 Quick Hook Part Number 50959

star star star star star_border
Aftermarket
50959

The heavy-duty hydraulic top link cylinder (code 50959) is engineered for agricultural tractor 3-point hitches, specifically adaptable to Massey Ferguson tractors from the 4300 Series (particularly the 4370 model). It features a minimum length of 700 mm, a stroke of 350 mm, an 80 mm bore, and a 40 mm rod diameter. It comes equipped with a Cat. 2 National quick-release hook on the rod end, a Ø 25.4 mm ball joint on the cylinder base end, and a 3/8" dual pilot check valve.

Hurry! only 3 items left in stock.
€419.00
Tax included
COUPON
- € 8,38
Final price: € 410,62
Quantity

Last 3 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Hydraulic Top Link Cylinder 700x80x40 for Massey Ferguson - Code 50959

The heavy-duty hydraulic top link cylinder (Product Code: 50959) is a professional-grade hydraulic actuator engineered for precision alignment, real-time geometry adjustment, and secure load retention of three-point linkage implements. Designed to be perfectly adaptable to Massey Ferguson tractor specifications, this dual-acting cylinder allows operators to adjust implement pitch angles dynamically from the cabin, maximizing working field performance and shifting efficiently into safe road transport configurations.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, maintaining rod stroke configurations even under sudden hydraulic hose ruptures or line pressure drops, shielding field implements from accidental dropping. The specific hardware layout features a heavy-duty spherical rod eye end with a 25.4 mm pin bore hole on the cylinder base side (tractor linkage), paired with an automatic quick-release catch hook classified under Category 2 National on the rod end side (implement linkage). The combination of a large 80 mm cylinder bore diameter, a high-tensile 40 mm micro-polished chrome rod, and an extended 350 mm stroke provides great mechanical reliability along with high thrust and retraction load parameters, making this link perfectly suited for high-tonnage agricultural implements performing heavy-duty tasks.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder
Brand Compatibility Massey Ferguson (Adaptable)
Minimum Length (Retracted) 700 mm
Cylinder Stroke 350 mm
Cylinder Bore Diameter (D) 80 mm
Piston Rod Diameter (d) 40 mm
Piston Rod End Fitting (F) Automatic quick-release latch catch hook - Cat. 2 National
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 25.4 mm
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Product Code 50959
Tractor Applications & Compatibility
Tractor Series Compatible Models
4300 Series 4370
