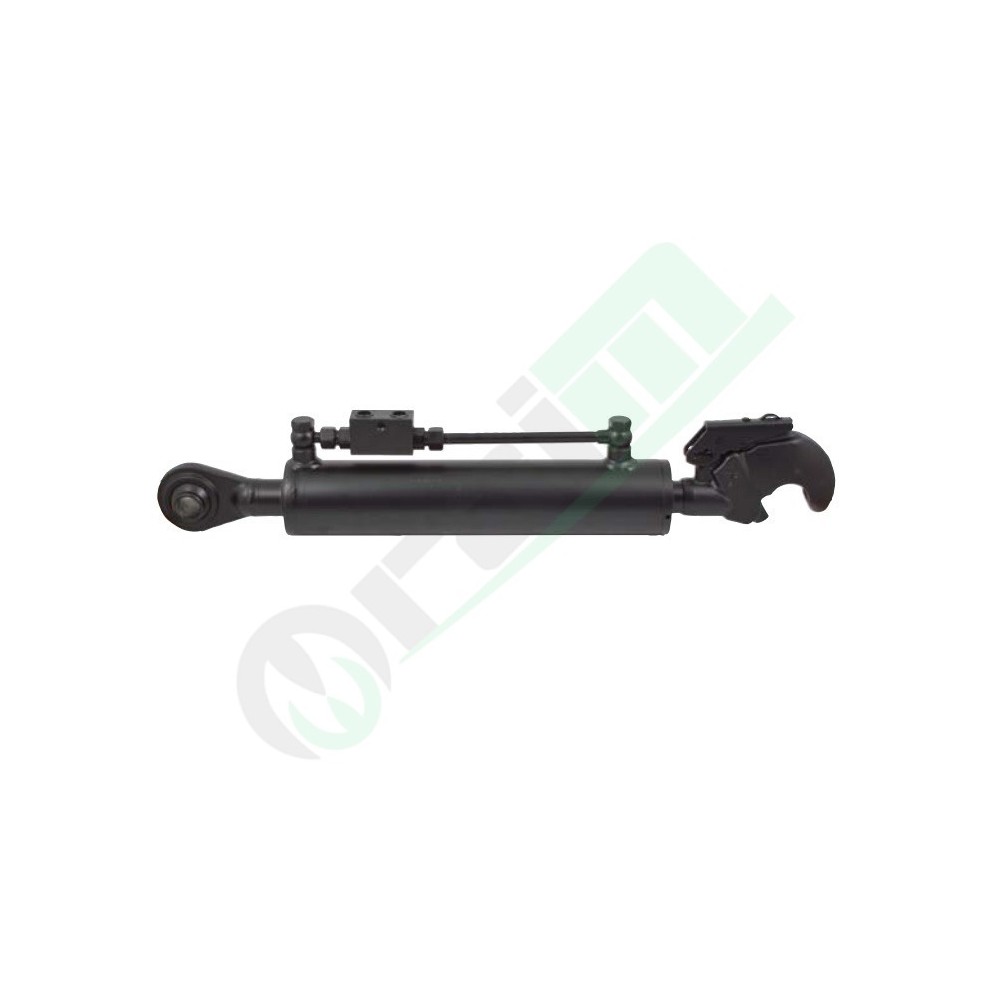

Hydraulic Top Link Cylinder 600mm Cat. 3 with Quick Release Hook Part Number 50855

star star star star star_border
Aftermarket
50855

The heavy-duty hydraulic top link cylinder (code 50855) is engineered for agricultural tractor 3-point hitches. It features a minimum length of 600 mm, a stroke of 240 mm, an 80 mm bore (cylinder diameter), and a 40 mm rod diameter. It comes equipped with a Cat. 3 National quick-release hook on the rod end, a Ø 32.4 mm ball joint on the cylinder base end, and a 3/8" dual pilot check valve.

Hurry! only 2 items left in stock.
€459.00
Tax included
COUPON
- € 9,18
Final price: € 449,82
Quantity

Last 2 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Hydraulic Top Link Cylinder 600x80x40 with Quick Release Hook - Code 50855

The heavy-duty hydraulic top link cylinder (Product Code: 50855) is a professional-grade hydraulic actuator engineered for precision alignment, real-time geometry adjustment, and secure load retention of three-point linkage implements. Featuring a reinforced dual-acting architecture with nominal build dimensions of 600x80x40 mm, this mechanism allows tractor operators to adjust implement pitch angles dynamically from the cabin, maximizing working field performance and shifting efficiently into safe road transport configurations.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, maintaining rod stroke configurations even under sudden hydraulic hose ruptures or line pressure drops, shielding field implements from accidental dropping. The specific hardware layout features a heavy-duty spherical rod eye end with a 32.4 mm pin bore hole on the cylinder base side (tractor linkage), paired with an automatic quick-release catch hook classified under Category 3 National on the rod end side (implement linkage). The combination of a large 80 mm cylinder bore diameter and a high-tensile 40 mm micro-polished chrome rod provides high thrust and retraction load parameters, making this link perfectly suited for high-tonnage agricultural implements performing aggressive ground engagement tasks.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder
Minimum Length (Retracted) 600 mm
Cylinder Stroke 240 mm
Cylinder Bore Diameter (D) 80 mm
Piston Rod Diameter (d) 40 mm
Piston Rod End Fitting (F) Automatic quick-release latch catch hook - Cat. 3 National
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 32.4 mm
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Product Code 50855
